Metal Additive Manufacturing Built for Real Engineering
IA3D’s Direct Metal Laser Sintering capabilities produce dense, high strength metal parts directly from CAD data using laser powder bed fusion technology. Our systems support complex geometries, internal channels, lightweight structures, and consolidated assemblies that are difficult or impossible to machine traditionally.
DMLS enables engineers to reduce weight, eliminate assembly steps, accelerate iteration cycles, and manufacture highly optimized components without tooling constraints.
Upload your file. Get pricing fast. For teams who are ready to move.
Not sure where to start? Share your idea. We’ll help guide the next step.
How Direct Metal Laser Sintering Works
DMLS builds metal components layer by layer using a high powered fiber laser to selectively fuse fine metal powder. Each layer is spread across the build platform, fused according to the CAD geometry, and repeated until the part is complete.
The surrounding unfused powder supports complex geometry during printing, allowing internal passages, lattice structures, and highly optimized part designs without traditional tooling limitations.
Metal Powder Layer Applied
Laser Selectively Fuses Geometry
Platform Lowers for Next Layer
Parts Cool, Depowder, and Finish
IA3D's Industrial DMLS Production Systems
Two platforms. One production workflow. Scalable metal manufacturing from prototype through production.

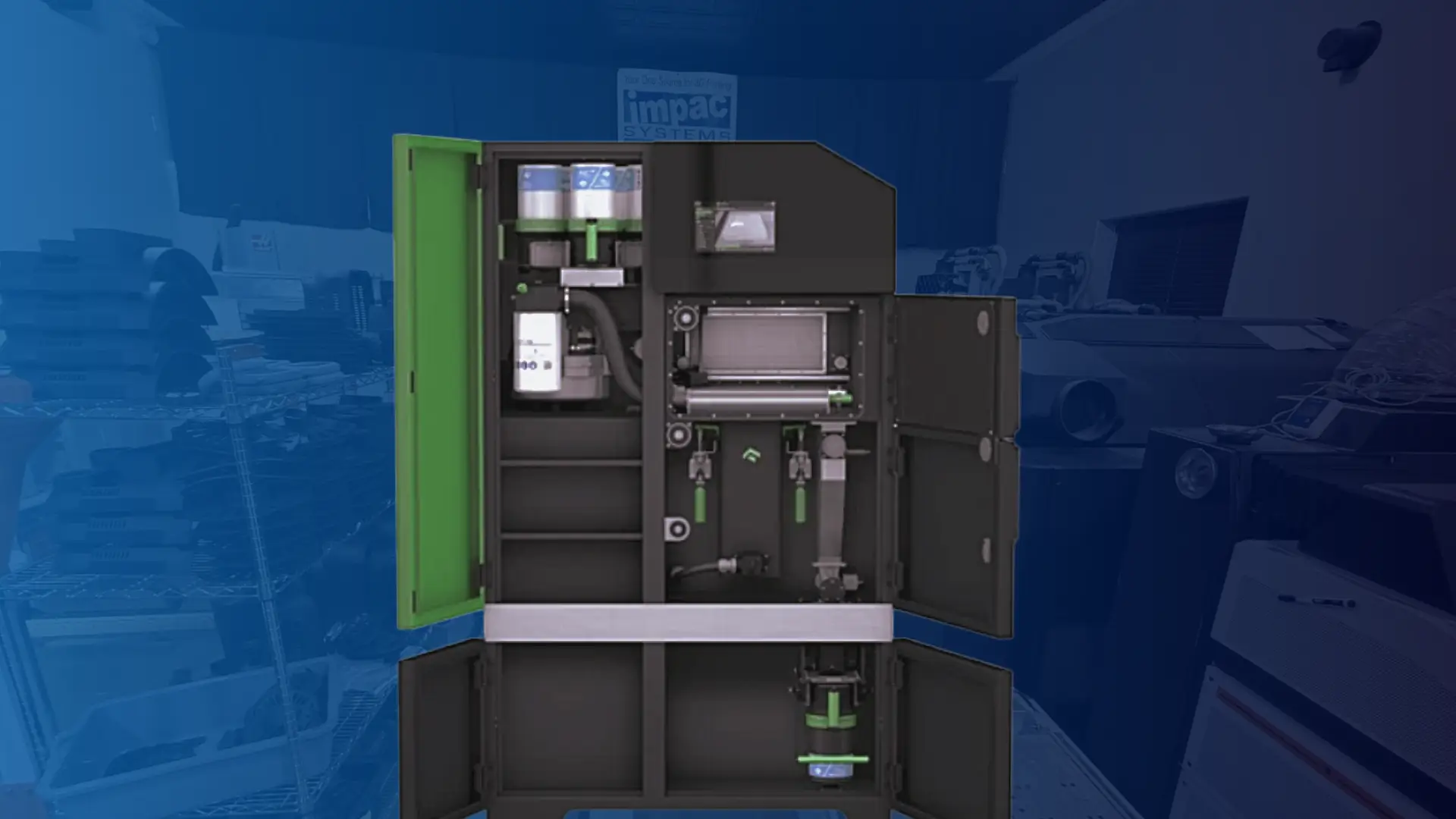

Technology:
Direct Metal Laser Sintering
Build Size:
150mm x 150mm x 150mm
(5.91 x 5.91 x 5.91 in)
Materials:
17-4PH SS
Ni718
Applications:
Precision 17-4PH stainless steel and Inconel 718 components for aerospace brackets, tooling inserts, and short-run metal parts under 150mm³.
Standard Dimensional Accuracy:
±0.1% to ±0.2% (±0.1 to ±0.2 mm minimum)

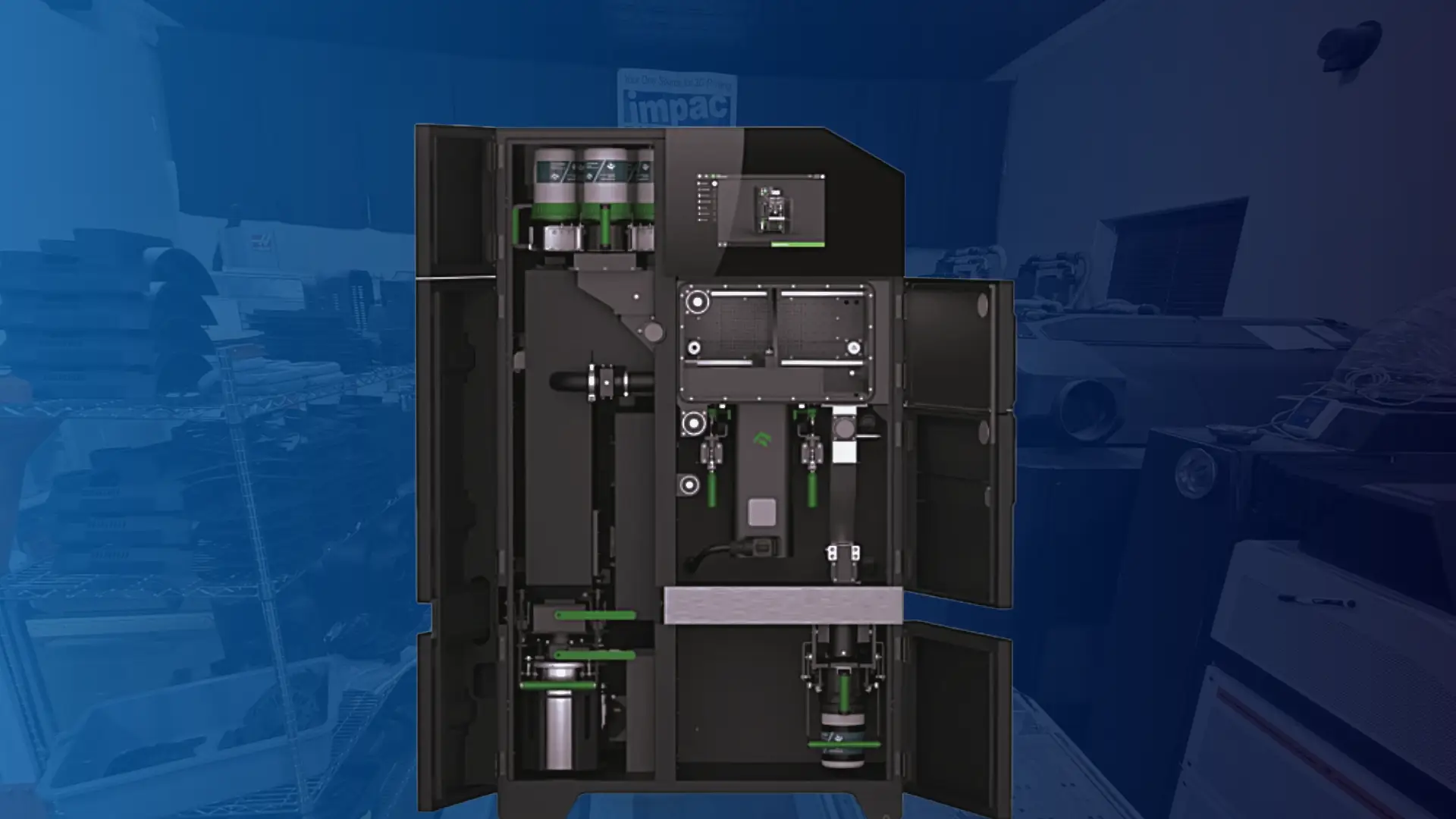

Technology:
Direct Metal Laser Sintering
Build Size:
150mm x 150mm x 250mm
(5.91 x 5.91 x 5.91 in)
Materials:
- Ti64 Grade 23
Applications:
Biocompatible Ti64 Grade 23 implants, aerospace structural brackets, and medical devices where strength-to-weight ratio and ISO 10993 compliance are required.
Standard Dimensional Accuracy:
±0.1% to ±0.2% (minimum ±0.1 to ±0.2 mm)
Open Full Technical Comparison Table of our Additive (3D Printing) Technologies
| Machine | Technology | Build Size | Layer Height | Accuracy | Design/Production Considerations |
|---|---|---|---|---|---|
| HP MJF 5620 | Multi Jet Fusion | 380 × 284 × 380 mm (15 × 11.2 × 15 in) | 0.08 mm | ± 0.3% (min ± 0.3 mm) | |
| HP MJF 4200 | Multi Jet Fusion | 380 × 284 × 380 mm (15 × 11.2 × 15 in) | 0.08 mm | ± 0.3% (min ± 0.3 mm) | |
| One Click Metal MPRINT | DMLS | 150 × 150 × 150 mm | 0.02 – 0.05 mm | ± 0.1% (min ± 0.05 mm) | |
| One Click Metal MPRINTpro | DMLS | 150 × 150 × 250 mm | 0.02 – 0.05 mm | ± 0.1% (min ± 0.05 mm) | |
| BigRep VIIO | Large Format FDM | 500 × 500 × 1000 mm | 0.2 – 0.8 mm | ± 0.5% (min ± 0.5 mm) | |
| BigRep One.5 | Large Format FDM | 1000 × 1000 × 1000 mm | 0.2 – 0.8 mm | ± 0.5% (min ± 0.5 mm) | |
Production Metal Alloys Data & Specifications
Compare mechanical properties, thermal performance, layer resolution, and application fit across our full portfolio of additive manufacturing materials.
Selecting the right material is as important as selecting the right process. IA3D provides detailed technical data for every production material we support, including tensile strength, elongation, heat resistance, layer thickness, surface characteristics, and recommended applications.
Available Direct Metal Laser Sintering materials include Stainless Steel, Aluminum Alloys, Titanium, Inconel, and Tool Steels.
Post Processing & Finishing
Support Removal
Precision removal of build supports
Heat Treatment
Stress relief and material property optimization
3-Axis Milling
Critical tolerances and precision mating surfaces
Bead Blasting
Uniform matte production finish
Surface Coatings
Additional wear and corrosion protection options
Inspection & Validation
Dimensional and quality verification workflows
Critical features verified with in house inspection.
Certificates of Compliance available upon request.
Why Engineers Choose DMLS
Complex Internal Geometry
Create conformal cooling channels and lightweight structures impossible to machine traditionally
Part Consolidation
Reduce multi component assemblies into a single printed part
Production Grade Metals
Manufacture functional metal components with high density and excellent mechanical performance
Rapid Iteration
Accelerate development without tooling lead times
Material Efficiency
Use only the material required for the build geometry
Reduced Weight
Optimize topology and lattice structures for high strength to weight ratios
Applications Built for Complex Engineering Challenges
From lightweight aerospace structures to high performance production tooling, IA3D delivers additive manufacturing solutions for applications that demand precision, durability, and design freedom.
