HP Multi Jet Fusion 3D Printing Services

Production scale nylon parts with injection mold quality

Upload your file. Get pricing fast. For teams who are ready to move.

Not sure where to start? Share your idea. We’ll help guide the next step.

Why HP MJF?

Consistent mechanical properties in all directions

No support structures, more design freedom

High packing density lowers the cost per part

Fast turnaround from prototype to production

Ideal for functional, end-use parts

IA3D's HP MJF Additive Manufacturing Machines

Same technology. Two systems. More capacity for your deadlines:

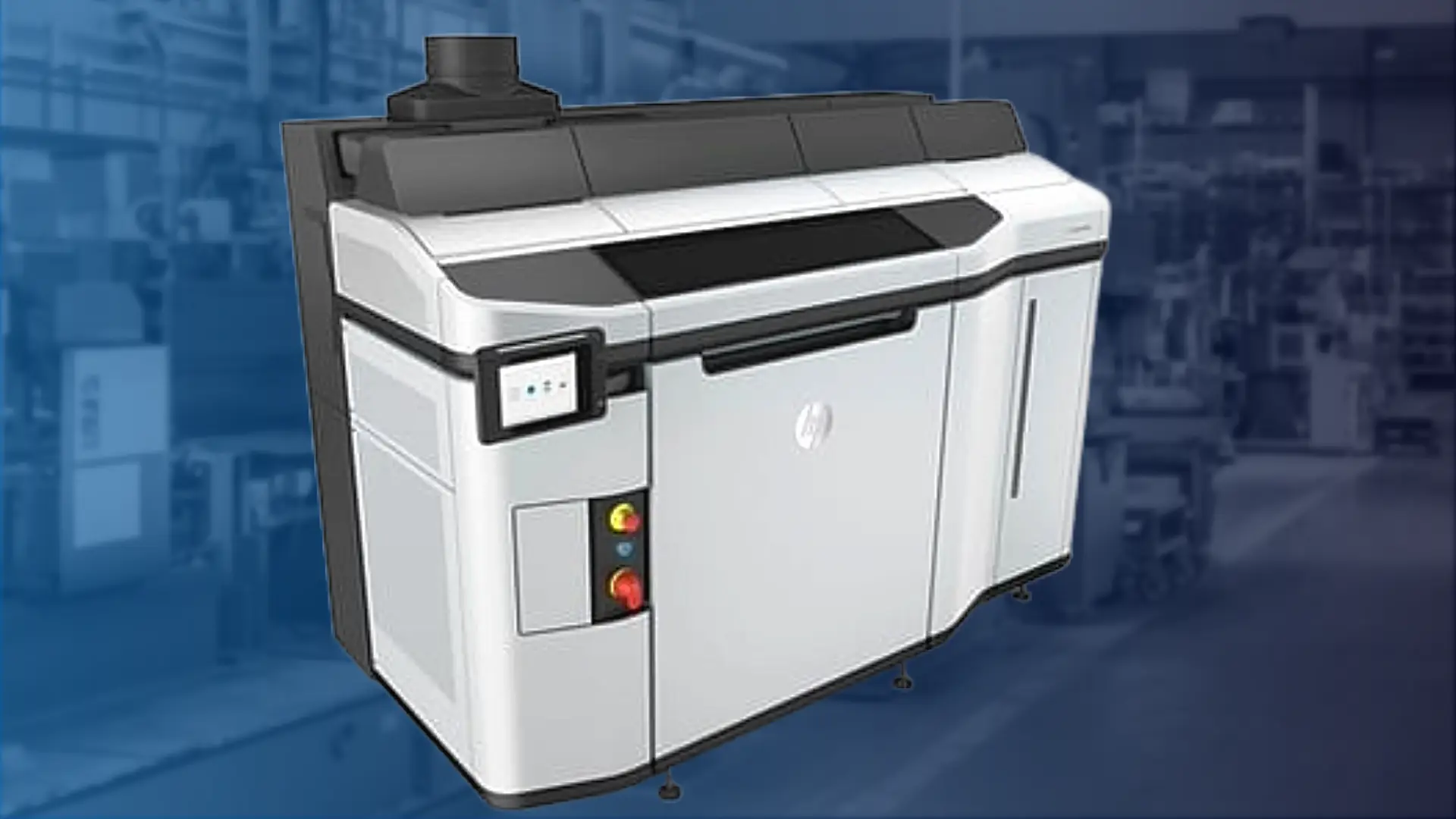

HP MJF 5620

Technology:
Multi Jet Fusion

Build Size:
380 × 284 × 380 mm
(15 × 11.2 × 15 in)

Materials:
PA12, PA11, PA12GB, PA12FC, PA12W, TPU

Applications:
Production-run polymer parts requiring tight tolerances (±0.3 mm), high-volume batch manufacturing without tooling costs, and end-use components that replace injection molding for low-to-mid volume runs.

Standard Dimensional Accuracy:
± 0.3% with a lower limit of ± 0.3 mm (± 0.012")

Download Specs

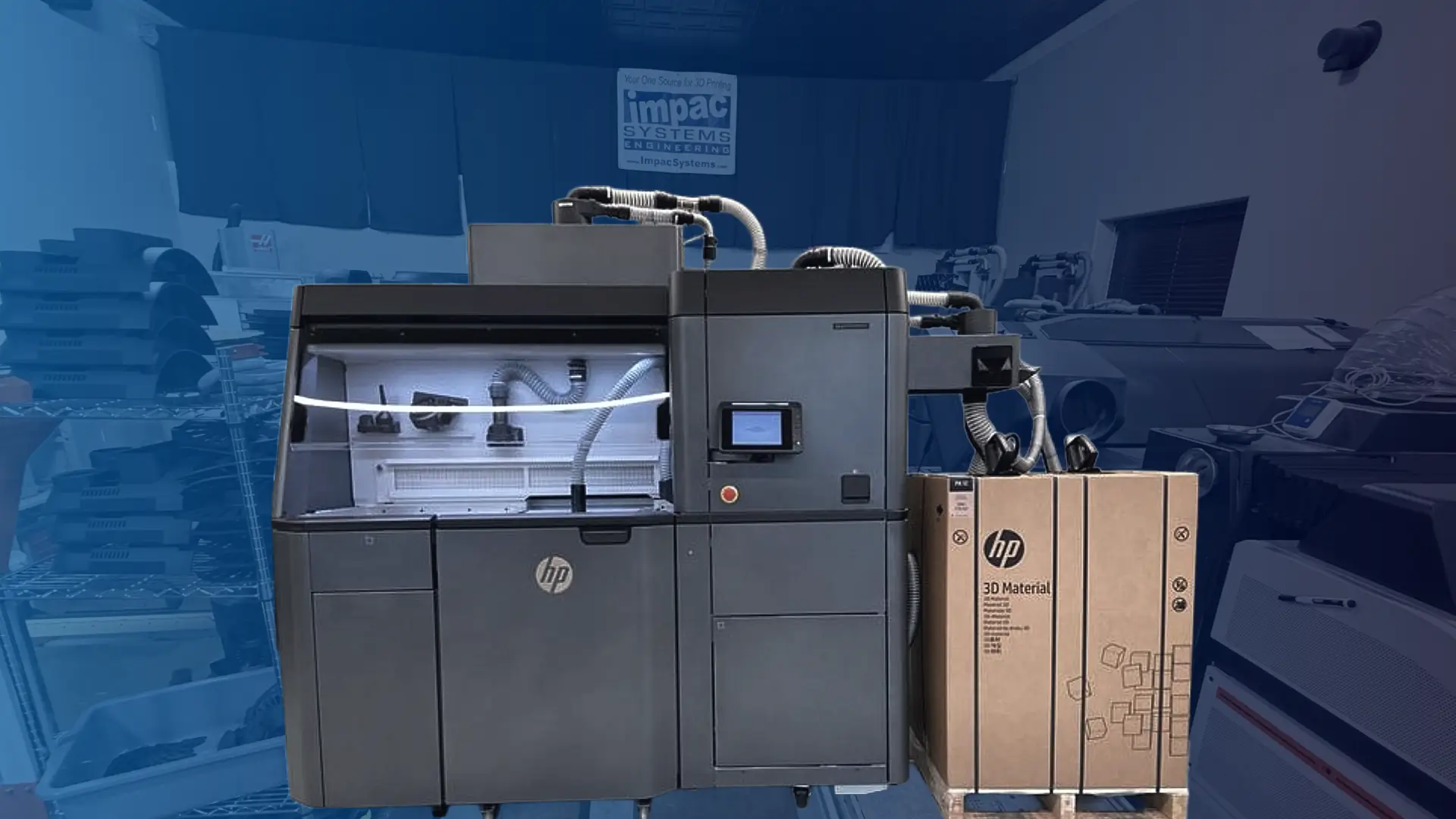

HP MJF 4200

Technology:
Multi Jet Fusion

Build Size:
380 × 284 × 380 mm
(15 × 11.2 × 15 in)

Materials:

PA12
TPA
PA11

Applications:
Functional prototypes, jigs & fixtures, and low-volume end-use parts where TPA flexibility or complex snap-fit geometries matter more than volume.

Standard Dimensional Accuracy:
± 0.3% with a lower limit of ± 0.3 mm (± 0.012")

Download Specs

Open Full Technical Comparison Table of our Additive (3D Printing) Technologies

Machine	Technology	Build Size	Layer Height	Accuracy	Design/Production Considerations
HP MJF 5620	Multi Jet Fusion	380 × 284 × 380 mm (15 × 11.2 × 15 in)	0.08 mm	± 0.3% (min ± 0.3 mm)	Near-isotropic strength. No supports required.
HP MJF 4200	Multi Jet Fusion	380 × 284 × 380 mm (15 × 11.2 × 15 in)	0.08 mm	± 0.3% (min ± 0.3 mm)
One Click Metal MPRINT	DMLS	150 × 150 × 150 mm	0.02 – 0.05 mm	± 0.1% (min ± 0.05 mm)	Heat-treatable. Excellent density (>99.5%).
One Click Metal MPRINTpro	DMLS	150 × 150 × 250 mm	0.02 – 0.05 mm	± 0.1% (min ± 0.05 mm)	Heat-treatable. Excellent density (>99.5%).
BigRep VIIO	Large Format FDM	500 × 500 × 1000 mm	0.2 – 0.8 mm	± 0.5% (min ± 0.5 mm)	Layer lines visible. Ideal for tooling, not precision fits.
BigRep One.5	Large Format FDM	1000 × 1000 × 1000 mm	0.2 – 0.8 mm	± 0.5% (min ± 0.5 mm)	Layer lines visible. Ideal for tooling, not precision fits.

How HP Multi Jet Fusion Works

HP Multi Jet Fusion builds parts layer by layer using fine nylon powder, fusing agents, and infrared energy. Unlike laser based systems that trace each feature individually, MJF applies energy across the full build area at once. This allows faster production speeds, more consistent thermal control, and highly repeatable mechanical properties.

Each layer is approximately 80 microns thick. Unfused powder supports the part during printing, eliminating the need for support structures and allowing complex internal geometries.

Step 1

Powder Layer Applied

Step 2

Fusing and Detailing Agents Deposited

Step 3

Infrared Energy Fuses the Layer

Step 4

Parts Cool, Depowder, and Finish

Why Engineers Choose MJF

Feature	HP MJF	FDM	SLA
Production Ready	Excellent	Moderate	Limited
Surface Finish	Smooth Matte	Visible Layers	Very Smooth
Mechanical Strength	High	Direction Dependent	Brittle
Support Structures	None	Required	Required
Complex Geometries	Excellent	Moderate	Good
Batch Production	Excellent	Limited	Moderate

Engineering Material Data & Specifications

Compare mechanical properties, thermal performance, layer resolution, and application fit across our full portfolio of additive manufacturing materials.

Selecting the right material is as important as selecting the right process. IA3D provides detailed technical data for every production material we support, including tensile strength, elongation, heat resistance, layer thickness, surface characteristics, and recommended applications.

Available materials include PA12, PA11, polypropylene, TPU, carbon fiber reinforced thermoplastics, metal alloys, and photopolymer resins across HP MJF, FFF, DMLS, and SLA/DLP platforms.
